Overview
The San Martin Silver Mine is 100% owned by First Majestic Silver Corp. The mine holds 33 contiguous mining concessions in the San Martin de Bolaños mining district that cover mineral rights for 38,512 hectares. San Martin also has 1,296 hectares of surface land that cover the areas where the company has the mines access, mine installations, and part of the access roads as well as an additional 160 hectares of surface land where the processing plant, camp, office facilities, maintenance shops, and tailings dams are located. (Mineral rights and surface land rights are independent of each other.) The San Martin mill also underwent an expansion from 950 tpd to 1,300 tpd which was completed in October 2013.
In July of 2019 the Company temporarily suspended all mining and processing activities at the San Martin operation due to a growing insecurity in the area and safety concerns for our workforce. The Company is working with authorities to secure the area in anticipation of restarting the operation, although it is not known when that might occur.
Stage
Production
Resource
Silver
Ownership
100%
Hectares
38,512
Measured & Indicated
9.0M Ag + 17K Au oz
Inferred
18.4M Ag + 29K Au oz
Location
The San Martin Silver Mine is located 250 km north of Guadalajara city in Jalisco State, Mexico. Drive time from the city to the mine is approximately four to five hours, or about 45 minutes by charter plane. San Martin is also near the small town of San Martin de Bolanos, which is just 7.9 km to the east. San Martin de Bolanos has a population of about 3,500 and the mine is a major contributor to the economy of the community.
San Martín de Bolaños offers retail, medical (including General and Seguro Social hospitals), educational (including Jr. and High School), and communications facilities; however, major facilities, including an International Airport, are located in the cities of Guadalajara, Zacatecas and Aguascalientes.
Mining & Milling Operations

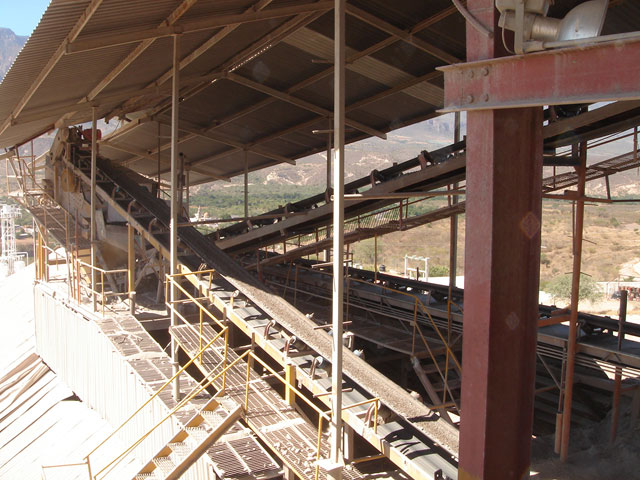

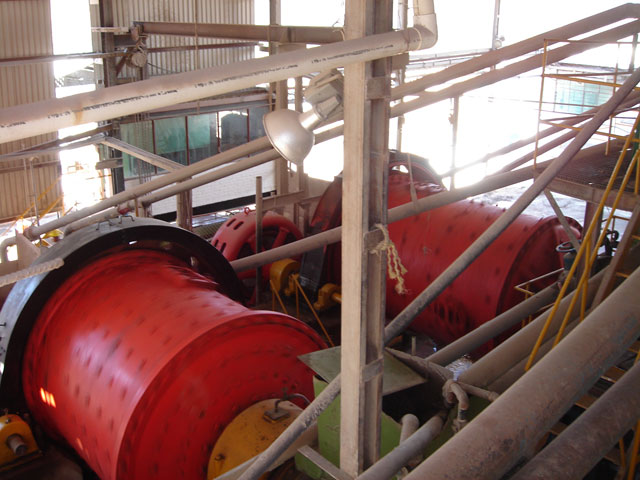

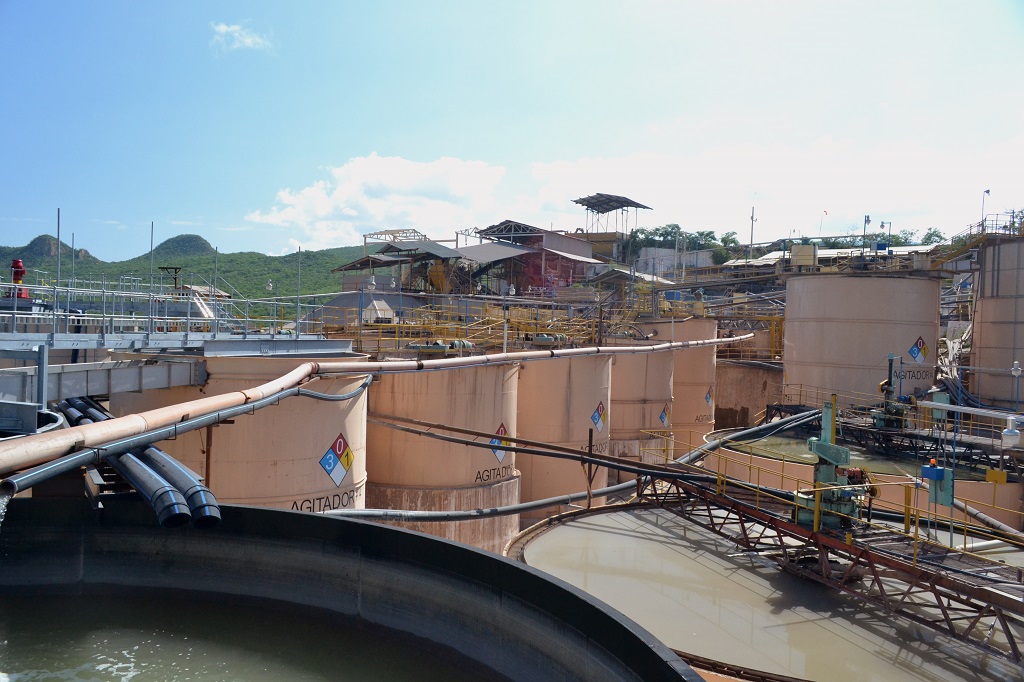

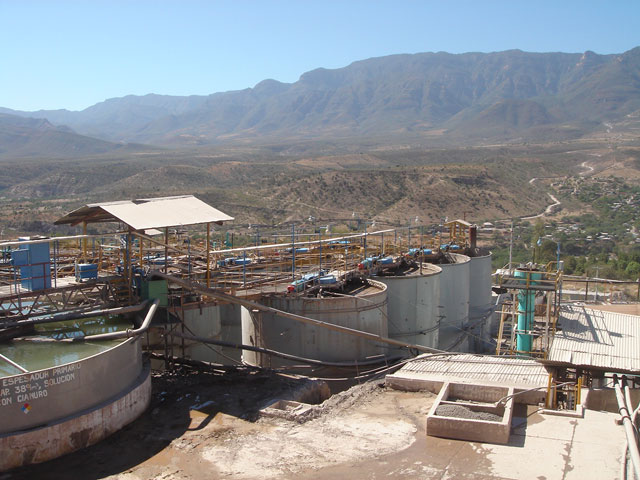

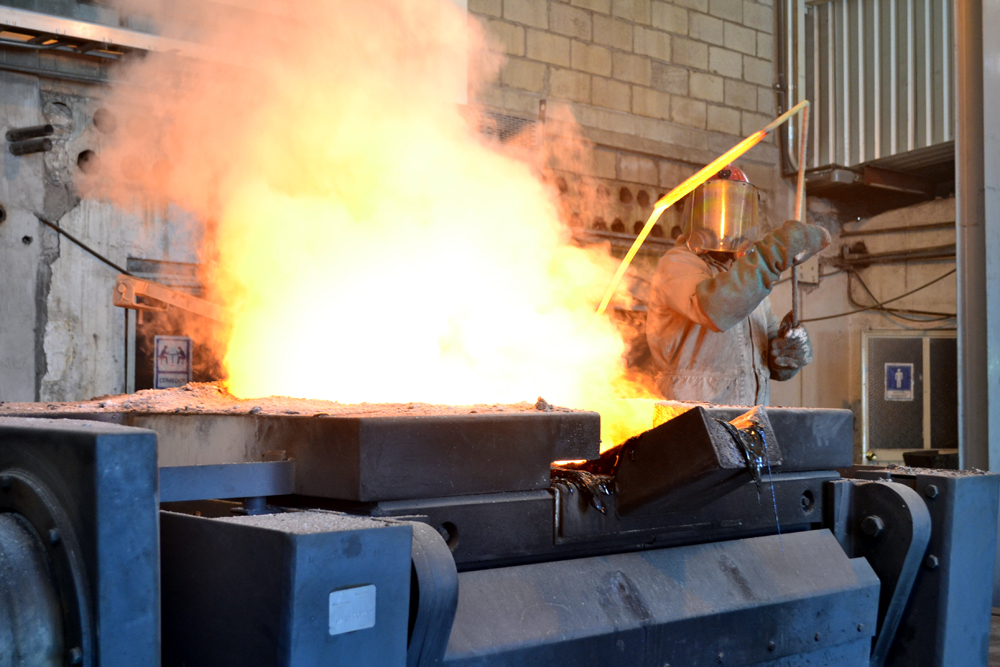

San Martin has undergone several improvements since the site was acquired by First Majestic in 2006. The most recent mill expansion (from 950 tpd to 1,300 tpd) was completed in October 2013. The newly expanded 1,300 tpd mill and processing plant consists of crushing, grinding and conventional cyanidation by agitation in tanks and a Merrill-Crowe dore production system. At full capacity of 1,300 tpd, San Martin's annual silver production has reached 2 million ounces of silver in the form of dore bars. Other elements of the modernization program included two new induction furnaces with two new filter presses, which were completed in 2011 and are now fully operational. These improvements are having a positive impact on overall production, quality of doré and total cash costs. Further improvements also included new leaching tanks and new thickeners.
Operating Highlights
| San Martin Production Results | 2018 | 2017 | 2016 | 2015 |
|---|---|---|---|---|
| Ore Processed/Tonnes Milled | 284,656 | 278,252 | 297,802 | 349,193 |
| Average Silver Grade (g/tonne) | 218 | 239 | 241 | 260 |
| Recovery (%) | 87% | 85% | 83% | 79% |
| Total Silver Ounces Produced | 1,746,139 | 1,822,297 | 1,902,963 | 2,296,965 |
| Gold Ounces Produced | 5,226 | 6,797 | 4,134 | 5,745 |
| Total Production - Ounces Silver Equivalent | 2,169,338 | 2,322,835 | 2,209,035 | 2,722,059 |
| Underground Development (m) | 11,722 | 11,344 | 10,120 | 7,680 |
| Diamond Drilling (m) | 25,788 | 26,078 | 22,135 | 3,640 |

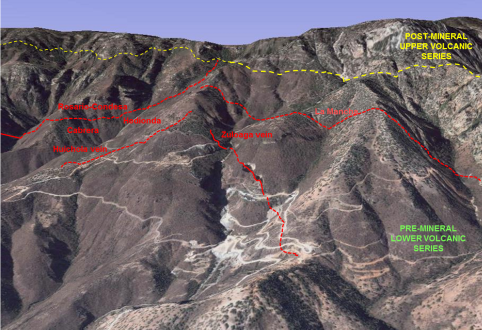

Local Geology, Mineralization & Ore Types

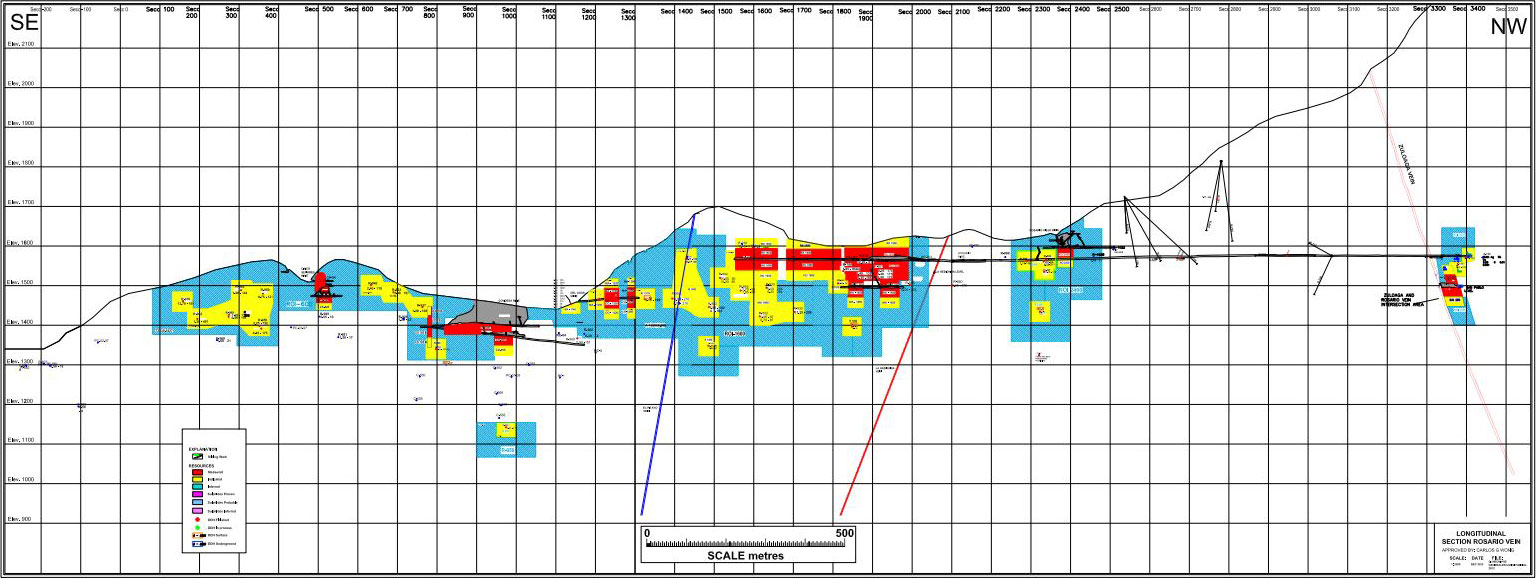

Drilling has been focused on deeper ore shoots of the Rosario vein for continuation of mineralization. First Majestic drilled 5,564 metres in 20 holes during 2014. Exploration drilling confirmed the continuity of the veins and generated new indicated resources. In 2015, delineation drilling and minor exploration drilling was carried out at the Rosarios vein at depth, development drifts along La Lima and intermedia veins were also started.
For more detailed geological information, readers are encouraged to review the Company's most recent NI 43-101 report on the San Martin Silver Mine.
The Reserves/Resources inventories are reported in NI 43-101 Technical Reports published periodically by the Company. The complete report can be viewed in the Reserves/Resources section or on SEDAR
