Overview

First Majestic acquired the Jerritt Canyon Gold Mine from Sprott Mining Inc. on April 30, 2021.

The Jerritt Canyon property contains 30,821 hectares of mining claims located in the mining friendly state of Nevada. The Jerritt Canyon deposit was discovered in 1972 and first gold production from the property occurred in 1981.

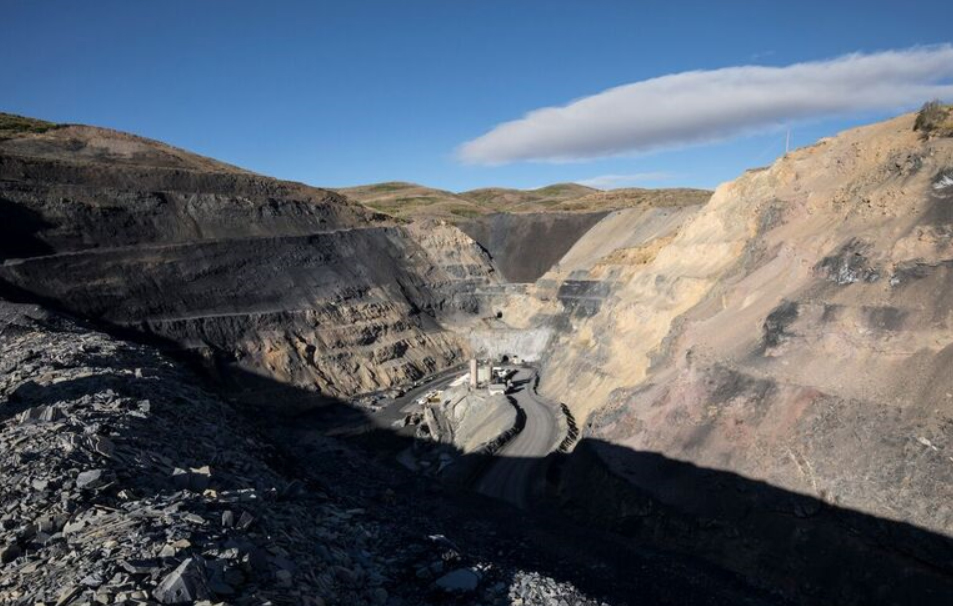

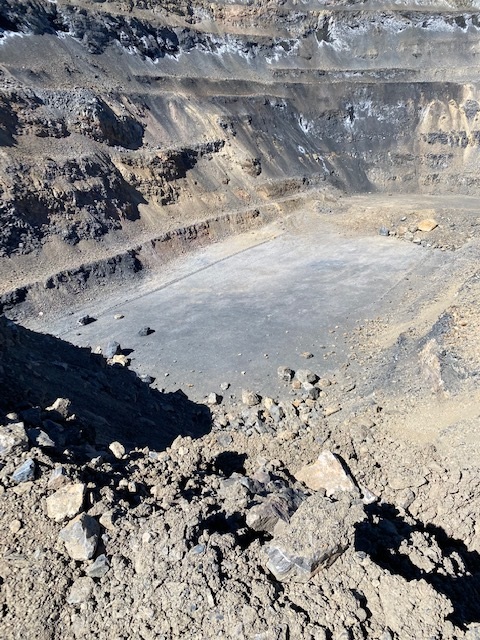

Open pit mining was conducted from early 1981 until late 1999, with the mining carried out in the areas of Marlboro Canyon, Alchem, Lower North Generator Hill, Upper North Generator Hill, West Generator, Burns Basin, Mill Creek, Pattani Springs, California Mountains, Dash, Winters Creek, Steer Canyon, and Saval Canyon. The annual production from these areas ranged from approximately 40,000 ounces to 1.4 million ounces.

Underground operations started in 1997 at SSX, and continued until 2008 with production from the Steer, Murray, MCE, Smith, West Generator, and Saval deposits. In 2009, a new mine plan was prepared.  Underground mining from the Smith deposit recommenced in late January 2010 and underground mining at SSX recommenced in early October 2010.

From the start of mining in 1980 to the end of December 2020, approximately 9.7 Moz Au were produced from approximately 49 Mst of ore mined at an average grade of 0.199 oz/st Au.

Stage

Production

Resource

Gold

Ownership

100%

Hectares

30,821

2021E Production

72,000 – 79,000 Au OZ
(5.1M TO 5.6M ageq oz)

2021E All-In-Sustaining Costs

$1,785 – $1,881

Proven & Probable Reserves

703K AU OZ

Measured & Indicated

832K AU OZ

Inferred

334K AU OZ

Location

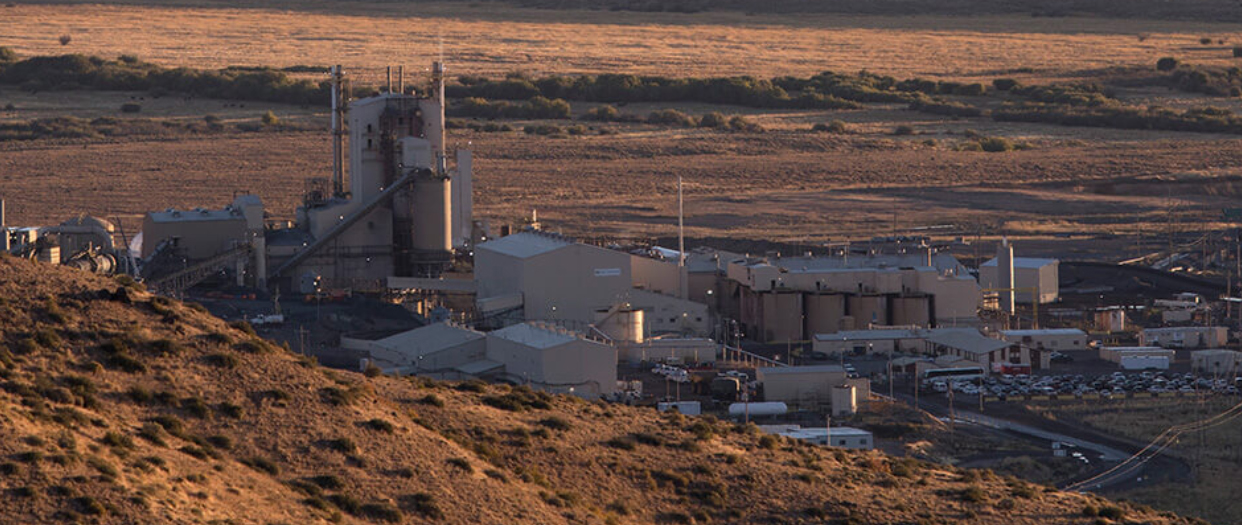

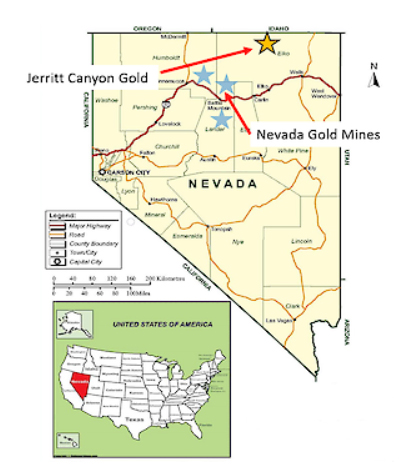

The Jerritt Canyon Gold property is located in Elko County, northeastern Nevada. The mill site, shops, and administration and security buildings are located approximately 45 miles north of the town of Elko. The property forms an irregular area that extends approximately 21 miles north-south and 17 miles east-west at its widest and is approximately 119 square miles. The property is bounded by 116° 10’ west and 115° 78” west longitude and 41° 23’ north and 41° 46’ north latitude.

Jerritt Canyon Gold property

Historical Production

Year Tons
Processed
(All Sources)
Daily
Tonnage
(stpd)
Mill Head
Grade
(oz/st Au)
Calculated
Contained Metal
(oz Au)
Recovery Production
1980 0 0 0 0 0 0
1981 333,768 914 0.08 26,701 87 23,000
1982 1,241,940 3,403 0.18 223,549 87 196,100
1983 1,093,200 2,995 0.277 302,816 86.5 261,900
1984 1,206,600 3,297 0.22 265,452 91.2 243,100
1985 1,284,500 3,519 0.22 282,590 89.2 255,400
1986 1,339,200 3,669 0.227 303,998 87.4 269,600
1987 1,512,400 4,140 0.215 325,166 91.8 315,900
1988 1,574,500 4,300 0.212 333,794 91.5 310,100
1989 1,825,800 4,983 0.178 324,992 89.8 236,700
1990 2,513,500 6,982 0.148 371,998 88 329,800
1991 2,882,200 7,897 0.147 423,683 88.7 374,400
1992 2,952,120 8,088 0.132 389,680 89.3 353,300
1993 3,024,390 8,286 0.126 381,073 89.6 340,200
1994 3,006,870 8,238 0.122 366,838 85.6 323,400
1995 2,945,915 8,071 0.129 380,023 86.1 327,900
1996 2,667,593 7,308 0.13 346,787 88 310,000
1997 1,539,561 4,218 0.22 338,703 91 320,000
1998 1,484,445 4,067 0.25 371,111 91 350,000
1999 1,609,374 4,409 0.25 402,344 91 363,333
2000 1,499,143 4,107 0.24 359,794 90 316,667
2001 1,469,000 4,014 0.31 455,390 89.2 403,000
2002 1,467,000 4,076 0.26 381,420 87.9 339,000
2003 1,496,441 4,100 0.23 336,699 88.3 302,096
2004 1,305,833 3,578 0.21 274,225 86.7 243,333
2005 1,106,937 3,033 0.22 243,526 86.6 204,091
2006 973,593 2,667 0.21 204,455 86.2 169,851
2007 968,130 2,652 0.206 199,435 88.2 175,646
2008 338,350 2,128 0.16 54,136 87.3 44,732
2009 0 - - - 86.3 9,770
2010 599,555 1,862 0.123 73,745 88.2 65,104
2011 628,418 1,853 0.142 89,235 85.8 67,748
2012 978,262 3,929 0.13 127,174 82.7 105,626
2013 1,084,131 3,288 0.154 166,956 85.5 139,556
2014 1,106,524 3,040 0.166 183,683 87.8 160,451
2015 573,810 3,284 0.172 98,742 84.7 83,497
2015 584,775 3,074 0.174 101,307 86.3 89,094
2016 1,191,674 3,765 0.144 171,333 85.4 140,989
2017 1,143,530 3,585 0.135 154,187 83.9 129,335
2018 1,213,609 3,325 0.137 165,670 85.7 141,963
2019 883,582 2,420 0.154 135,736 85.5 116,060
2020 826,234 2,265 0.16 131,830 85.5 112,749

Geology and Mineralization

The Jerritt Canyon Gold District is located in the Great Basin, north and northeast of the Carlin Trend of gold deposits. Carlin-type gold mineralization at Jerritt Canyon is hosted by silty carbonate or carbonaceous siliciclastic rocks originally deposited as shelf sedimentary rocks during the Paleozoic Era. The Paleozoic host rocks have been imbricated, faulted, and folded through several orogenic events through the Paleozoic Era and Mesozoic Era. Carlin-type gold deposits were emplaced in the Middle to Late Eocene period during an initial phase of extensional tectonics at which time high potassium calc-alkaline magmatic rocks were emplaced. Mafic dikes were emplaced during this phase of igneous activity and trend north-northeast and west-northwest.

The occurrence and distribution of gold mineralization at Jerritt Canyon is controlled by both lithology and structure. Deposits at Jerritt Canyon are mostly stratabound or fault hosted. Gold occurs as very fine, micron-size, particles in pyrite and arsenian pyrite.

Mining and Processing

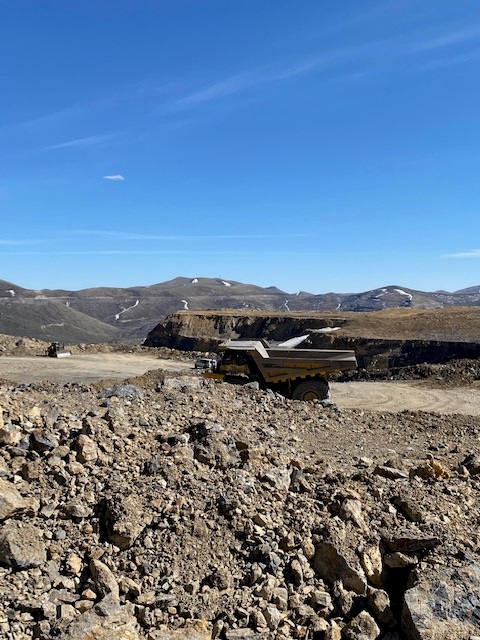

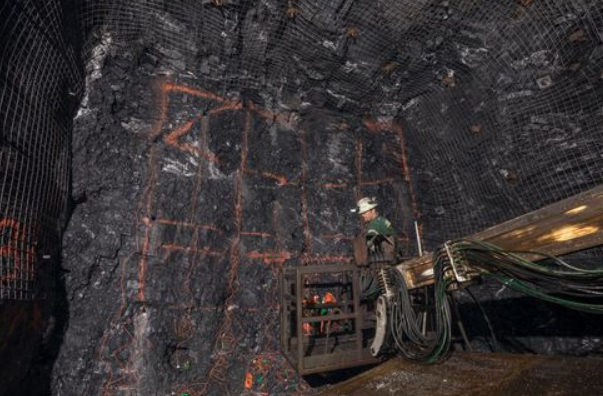

All underground mines in Jerritt Canyon are less than 1000 feet in depth. Low profile 35 and 40-ton tractors are used to remove ore, which is then stacked near the mine portals for grade sampling. After sampling, ore is transported by 150-ton haul trucks to the mills, where the feed is dried and roasted. Gold is recovered using conventional carbon-in-leach processing. High quality gold bars are then shipped for commercial refining and sale.

The mineral processing operation at Jerritt Canyon is one of only three processing plants in Nevada that uses roasting in its treatment of refractory ores. Initially, Jerritt Canyon was designed to process oxide and mildly refractory gold ores. In 1989, the roasting circuit was added to the process for the treatment of highly refractory ores which are now being mined and processed at Jerritt Canyon.

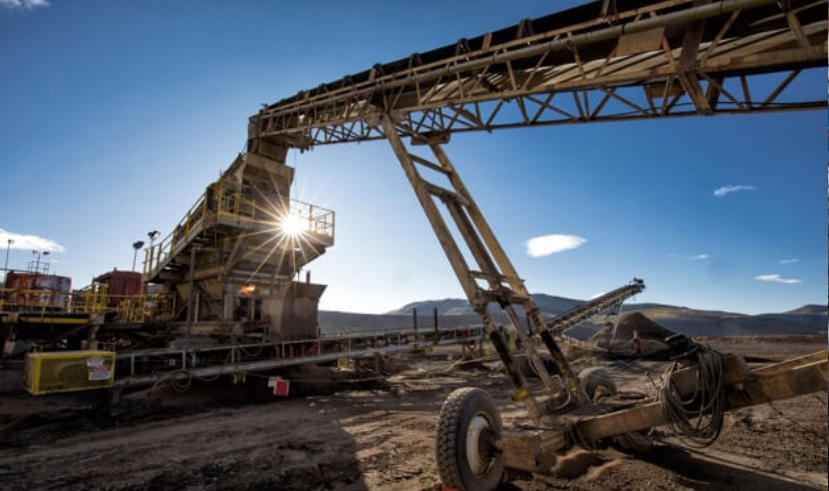

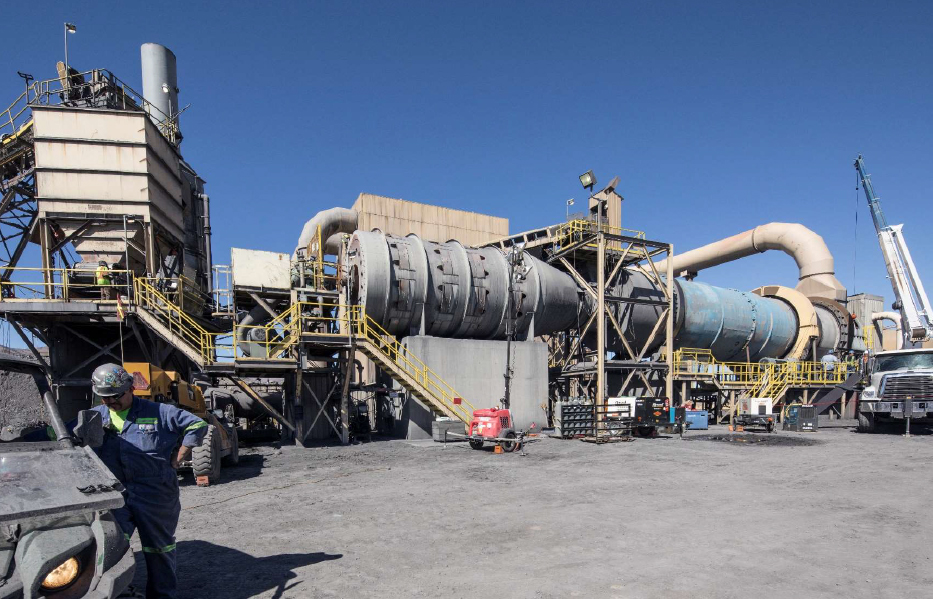

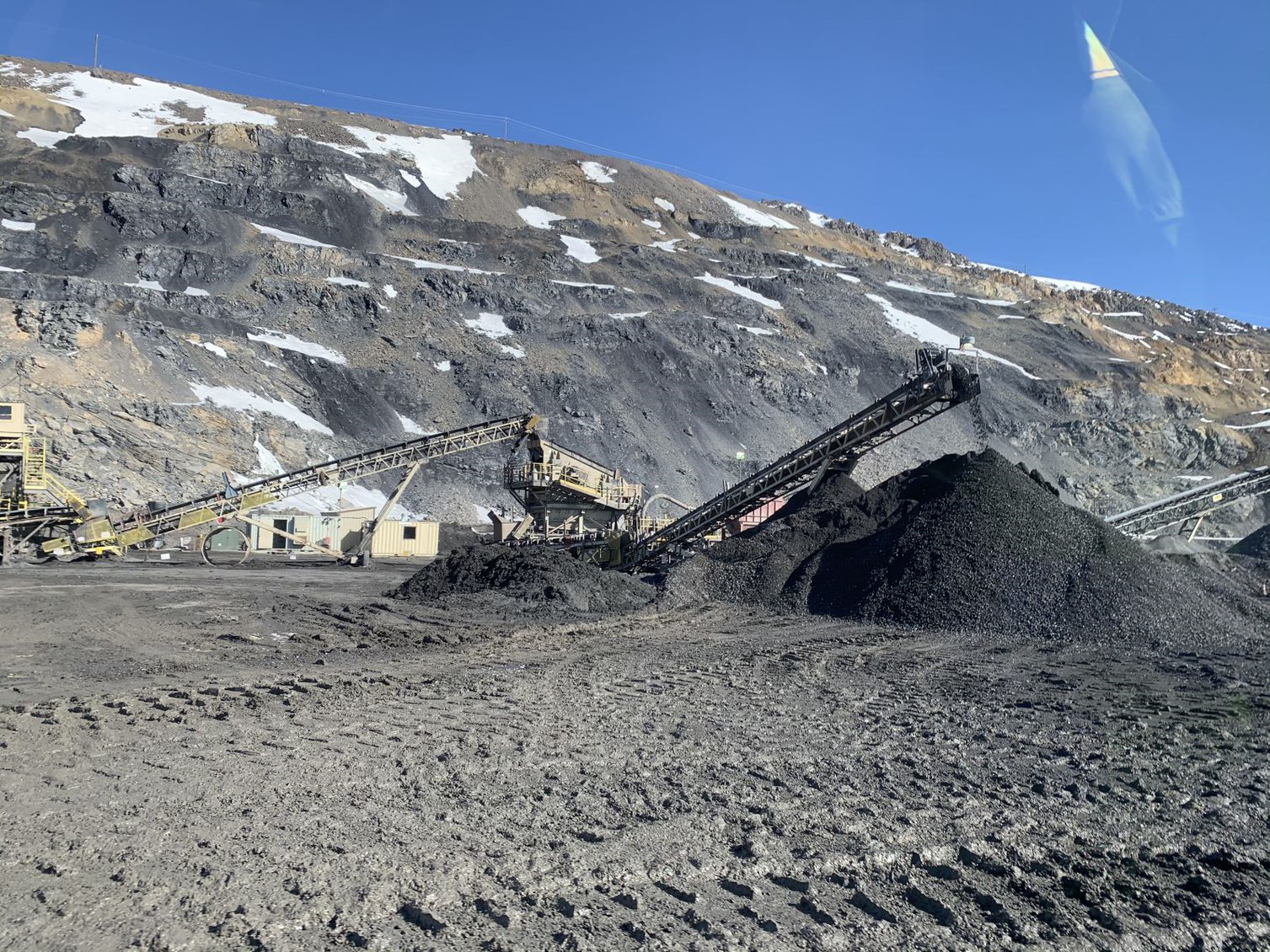

The milling process begins with crushing run of mine (ROM) ore to minus five inches in a 42 inch x 48 inch jaw crusher. The crushed ore is then conveyed to a gas-fired drier where the crushed material is dried to about 1% moisture. The dried ore is then conveyed to the secondary crushing circuit, which consists of a single 4.25 foot Symons standard cone crusher operated in open circuit.

The crushed ore is then advanced to the tertiary crushing circuit, which consists of two Symons 4.25 short head cone crushers operated in closed circuit with vibrating screens to produce a minus 3/8 inch product, which is then conveyed to a 2,000 ton fine ore bin that feeds the dry grinding circuit. The dry grinding circuit consists of a 18.5 foot diameter x 14.5 foot long Fuller grate-discharge ball mill driven by a 2,500 hp motor and operated in closed circuit with a Fuller O’Sepa air classier to produce a final ground product sized at about 80% passing 105 microns, which is stored in a 2,000 ton roaster feed bin.

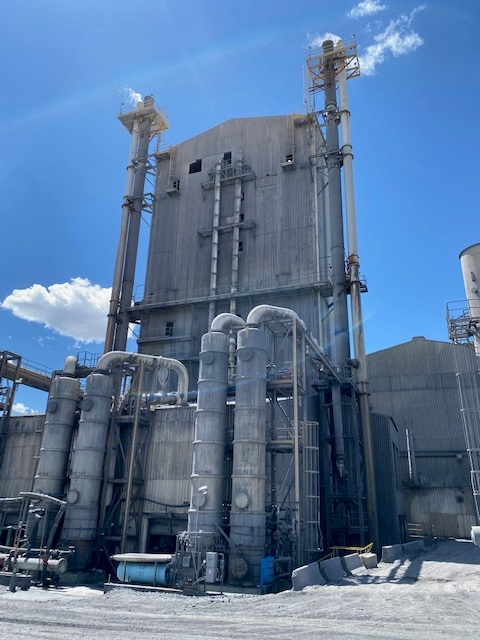

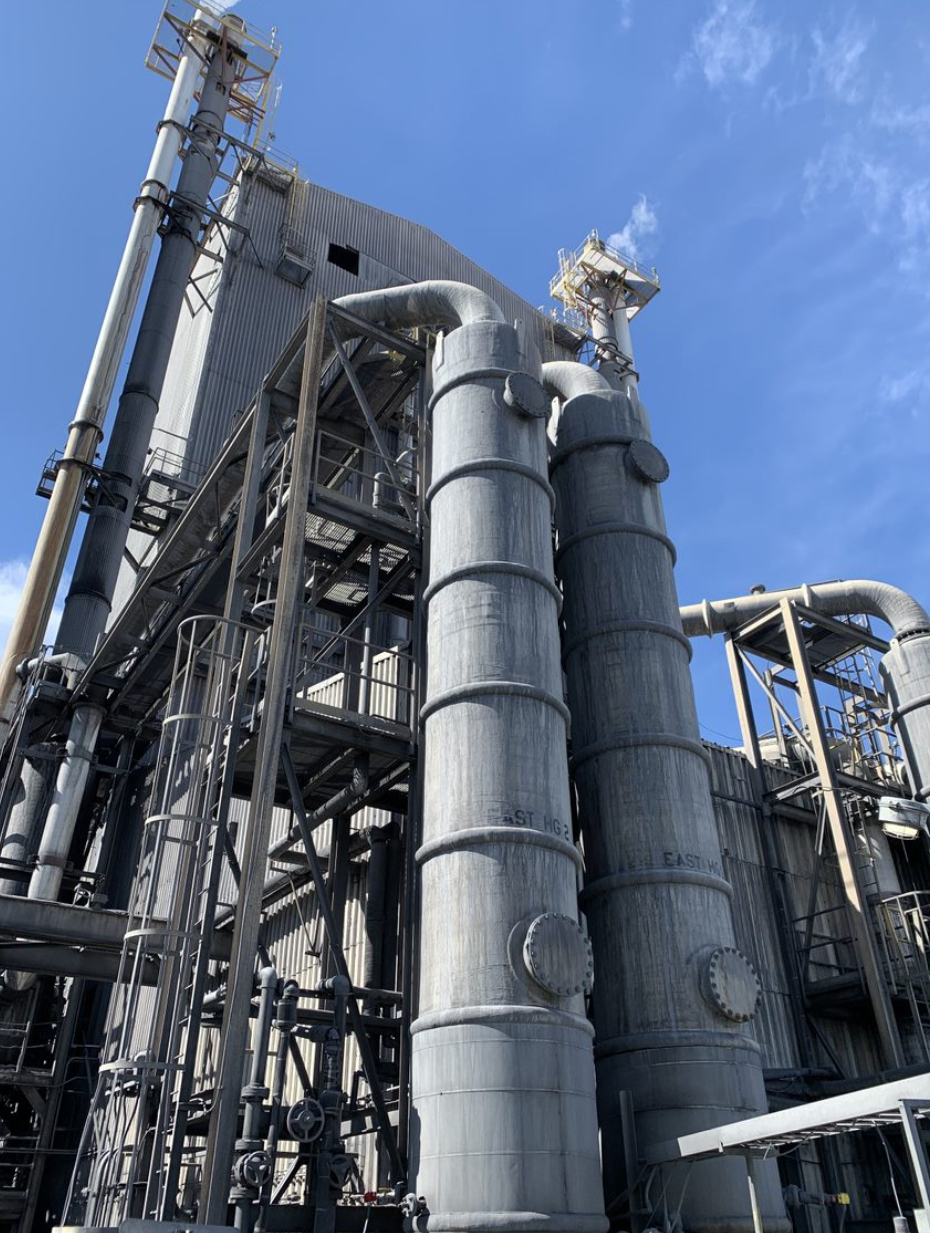

The ore roasting circuit at Jerritt Canyon consists of two Dorr-Oliver two-stage fluid-bed roasters, each rated at 2,000 stpd. Ore is withdrawn from the feed bin by a variable speed screw feeder and lifted with a bucket elevator to the roaster feed system and dropped into the roaster. The roasting process almost completely destroys all of the refractory constituents which makes cyanidation more effective.

The fluid-bed roasting system has no moving parts and can generally be operated at high availability. The use of oxygen as opposed to air as the fluidizing-combustion gas reduces the size of scrubber and achieves high conversions of sulfides and carbon at lower combustion temperatures than would be required by traditional air roasting.

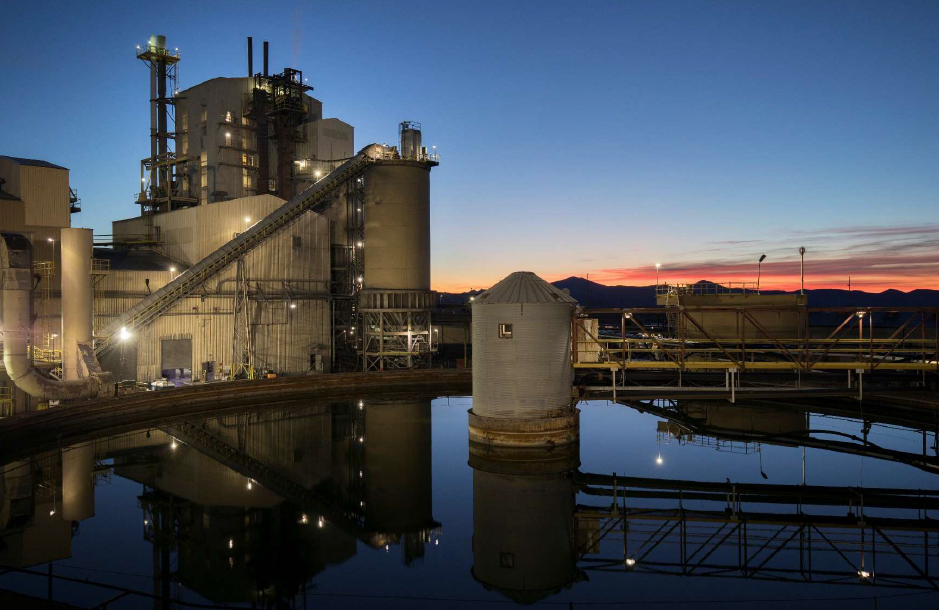

After the ore exits the roaster it drops into quench tanks. The solution is then pumped to a thickener prior to advancing to the CIL cyanidation circuit, where the gold is leached and recovered using procedures standard to the industry.

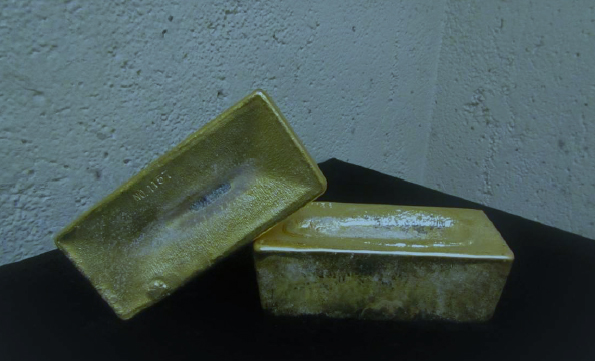

High quality gold doré bars are then shipped for commercial refining and sale.

Technical Report  On The Jerritt Canyon Mine, Elko County, Nevada, USA – April 30, 2021
